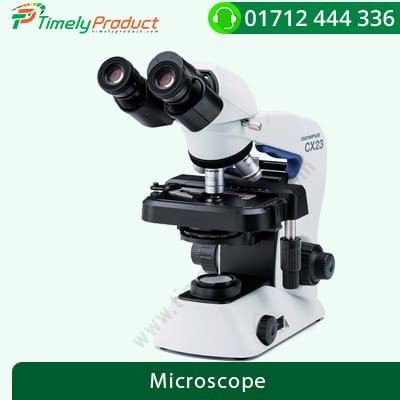

Olympus CX23 Microscope Spectrometer 5 million Pixels 0.5X

Olympus CX23 Microscope Spectrometer 5 million Pixels 0.5X Specifications: Product Name  Microscope Brand Olympus Model  CX23 Optical System Infinity optical system Observation Tube 30° inclined binocular tube Interpupillary distance adjustment range: 48 – 75 mm, Eyepoint adjustment: 370.0 – 432.9 mm Eyepiece (10x) Field Number (FN): 20 (anti-fungus) Revolving Nosepiece Fixed quadruple nosepiece with inward tilt Objectives Infinity Plan achromat, anti-fungus 4x NA: 0.10 W.D.: 27.8 mm 10x NA: 0.25 W.D.: 8.0 mm 40x NA: 0.65 W.D.: 0.6 mm 100x Oil NA: 1.25 W.D.: 0.13 mm Focusing Stage height movement (coarse movement stroke: 15 mm), coarse adjustment limit stopper, Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjustment gradations: 2.5 µm) Stage Wire movement mechanical fixed stage Traveling range: 76 mm (X) x 30 mm (Y), Specimen holder, Specimen position scale Condenser Abbe condenser NA 1.25 with oil immersion Illumination System Built-in transmitted illumination system, LED Power Consumption 0.5 W (nominal values) Body Aluminum die-casting metal frame, Protective covering
